aagtools Riveters

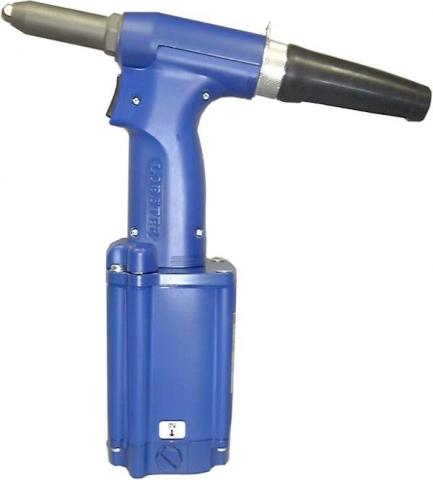

The new Millenium 2000 Series riveters are built with a high impact polymer case to deliver value and performance in a lightweight, powerful package. The 2000 Series features a quicker rivet setting cycle and longer stroke for increased productivity. Lobster's exclusive Soft-Set shockless technology absorbs jarring vibrations, which enhances worker safety and minimizes the risk of CTDS. The new Lobster 2000 Series--setting new standards for blind riveting.

Lightweight, with excellent power-to-weight ratio
Soft-Set shockless technology offers ergonomically correct action to minimize risk of CTDs(cumulative trauma disorders)
Ultra Jaws for longer life
Noise-reducing muffler
Sets up to 1/8" (3.2 mm) standard rivets in all materials, and 5/32" (4.0mm) standard rivets in aluminum and steel
Wear-resistant surfaces extend tool life
Air whip hose can be connected to either side of tool for flexibility in use
Long stroke

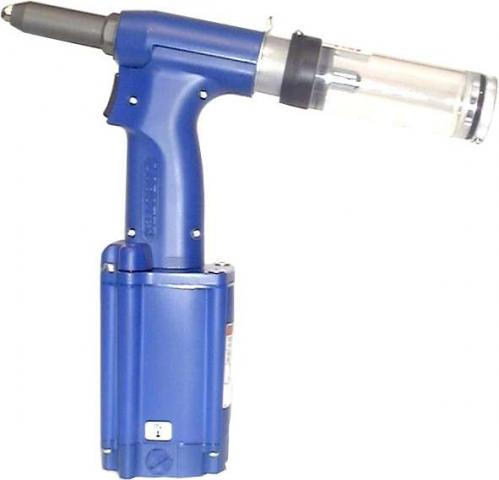

Integrated vacuum system for mandrel retention and collection
Mandrel collection bottle design allows for easy disposal of spent mandrels

Millennium Series

The new Millenium 2000 Series riveters are built with a high impact polymer case to deliver value and performance in a lightweight, powerful package. The 2000 Series features a quicker rivet setting cycle and longer stroke for increased productivity. Lobster's exclusive Soft- Set shockless technology absorbs jarring vibrations, which enhances worker safety and minimizes the risk of CTDs. The new Lobster 2000 Series--setting new standards for blind riveting.

Lightweight, with excellent power-to-weight ratio
Soft-Set shockless technology offers ergonomically correct action to minimize risk of CTDs (cumulative trauma disorders)
Ultra Jaws for longer life
Noise-reducing muffler
Sets up to 1/8"(3.2mm) (3.2mm)standard rivets in all materials, and 5/32" (4.0mm) standard rivets in aluminum and steel
Wear-resistant surfaces extend tool life
Air whip hose can be connected to either side of tool for flexibility in use
Long stroke

Soft-Set Shockless Tools

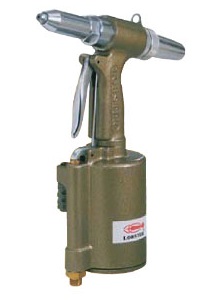

AR-021M, AR-021M-RJ

AR-021M

Soft- Set® shockless technology offers ergonomically correct action to minimize risk of CTDs (cumulative trauma disorders)
Ultra Jaws for longer life
Lightweight
Noise-reducing muffler
Heavy duty diecast construction
Sets up to 3/16" (4.8mm) standard rivets in all materials.
Wear-resistant surfaces extend tool life

AR-021M-RJ

Same features as AR-021M, plus
360° rotary air joint allows for vertical placement on workstation

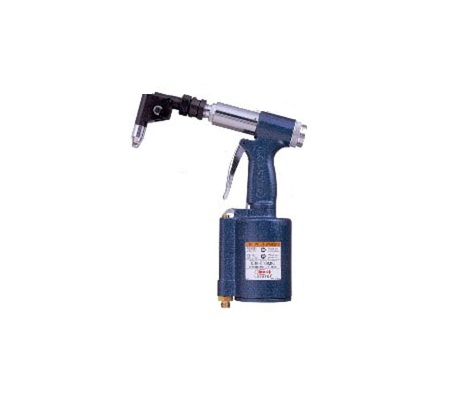

AR-021MC

Soft-Set® shockless technology offers ergonomically correct action to minimize risk of CTDs (cumulative trauma disorders)
Ultra Jaws for longer life
Lightweight
Noise-reducing muffler
Heavy duty diecast construction
360° rotating right angle head
Sets up to 1/8" (3.2)standard rivets in all materials

AR-021H

Soft-Set® shockless technology offers ergonomically correct action to minimize risk of CTDs (cumulative trauma disorders)
Ultra Jaws for longer jaw life
Lightweight
Noise-reducing
Heavy duty diecast construction
Sets up to 1/4" (6.4 mm) standard rivets in all materials
Wear-resistant surfaces extend tool life
One of the world's most versatile riveters - sets all five rivet sizes

AR-021H-RJ

Same as features AR-021H, plus
360º rotary air joint allows for vertical placement on workstation

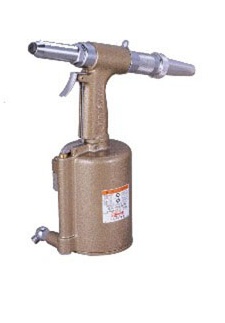

AR-021EX

Soft-Set® shockless technology offers ergonomically correct action to minimize risk of CTDs (cumulative trauma disorders)
Ultra Jaws for longer jaw life
Long stroke (>1" (26.0 mm) sets longer rivets in one trigger actuation
Sets 3/16" (4.8 mm) and 1/4" (6.4) structural Monobolt rivets, "T" rivets and standard rivets - all nosepieces included with tool
Heavy duty construction for rugged applications
360° rotary air joint
Noise-reducing muffler

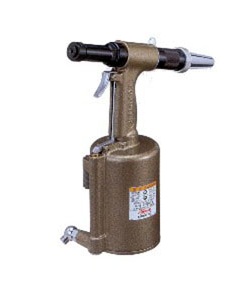

AR-021EXH

Soft-Set® shockless technology offers ergonomically correct action to minimize risk of CTDs (cumulative trauma disorders)
Designed specifically for 1/4" (6.4 mm) Magna-Lok® structural rivets
Over 3700 lbs. (1700 kg) traction power
Heavy duty construction for rugged applications
360° rotary air joint
Noise-reducing muffler

ARV-031M

Integrated, on-demand vacuum system for mandrel retention and collection
On demand palm trigger regulates vacuum air consumption
Wear-resistant surfaces on the hydraulic cylinders and pistons extend tool life
Soft-Set shockless technology
Ultra Jaws for longer jaw life
Lightweight
Noise-reducing muffler
Heavy duty diecast construction
Set up to 3/16" (4.8 mm) standard rivets in all materials
Able to operate in conjunction with our exclusive ARF-700M auto-feeding rivet presenter system

Traditional Tools

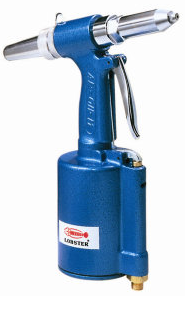

AR-011S, AR-011M

Most versatile blind rivet tool line - sizes and style to satisfy any production need.
Excellent value - dependable and cost effective
Durable, lightweight and portable
Operates in any position
Adjustable spent mandrel deflectors
Sets up to 1/8" (3.2 mm) rivet in all materials

AR-011P

Most versatile blind rivet tool line - sizes and style to satisfy any production need.
Excellent value - dependable and cost effective
Durable, lightweight and portable
Operates in any position
Adjustable spent mandrel deflectors
Offset head for tight clearance access
3/16" (4.8 mm) rivet capacity in all materials

AR-011H

Most versatile blind rivet tool line - sizes and style to satisfy any production need.
Excellent value - dependable and cost effective
Durable, lightweight and portable
Operates in any position
Adjustable spent mandrel deflectors
1/4" (6.4 mm) rivet capacity in all materials

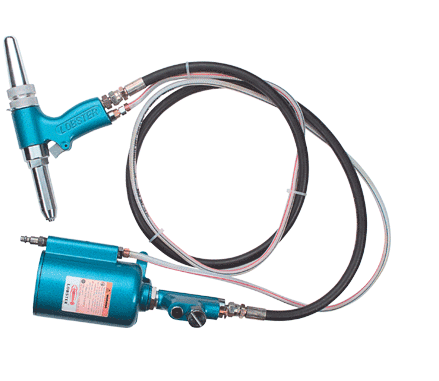

AR-012

Exclusive, innovative design reaches otherwise inaccessible points
Lightweight hand-operated rivet pistol head
Ergonomic benefits
Remote pneumatic/hydraulic intensifier pump
Over 2800 lbs. (1300 kg) traction power
Sets any standard rivet from 3/32" through 1/4"(6.4 mm)
Economical choice for enhanced tool value

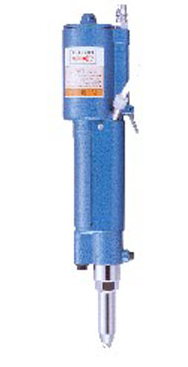

ARV-015S, ARV-015M

Ultra Jaws for longer jaw life
Unique ergonomic in-line vertical design
Ideal for fixed position assembly line workstations with overhead counterbalance approach
Integrated vacuum system for mandrel retention and removal to an off-line receptacle
Sets up to 1/8"(3.2 mm) standard rivets
Able to operate in conjunction with our exclusive ARF-700M autofeeding rivet presenter system
An industry standard for over 25 years

CONSIDER THIS SIMPLE ADD-ON FOR YOUR 'LOBSTER' RIVETER....
ORGANIZE YOUR WORK AREA AND BOOST PRODUCTIVITY

Simple installation on all standard pistol grip Lobster S, M and H Tools.
Patented built-in ON/OFF valve
Flexible designed air joint for left or right handed operators
Light weight, only 10 oz.
Vacuum tools can also be used with Lobster Autofeeding Rivet systems.
An optional Shoot Hose in place of Mandrel Container collects mandrels off line.

Features:
1. Retains spent mandrels in container, protects product quality, reduces clean-up, improves safety.
2. Holds rivet in the nosepiece, regardless of tool position - speeds up assembly, permits one hand operation.
3. Operator friendly because operators are fresher, less fatigued - thus more productive.

Vacuum Units
VU-S/ VU-M/VU-H48/VU-H64

ARV-022M, AR-022M

Soft-Set® shockless technology offers ergonomically correct action to minimize CTDs
Ultra Jaws for longer jaw life
Lightweight, pistol grip riveting head weighs under two pounds and works with remote intensifier
Exclusive hydraulic swivel fittings for ease of operator control
Vacuum mandrel collection system holds rivet prior to setting, and collects spent mandrels either to attached bottle or through a tube to an off-line receptacle
Mandrel vacuum system for mandrel retention and collection or evacuation to an off-line receptacle
Long stroke
Able to operate in conjunction with our exclusive ARF-700M autofeeding rivet presenter system
Set up to 3/16"(4.8 mm) rivets in all materials

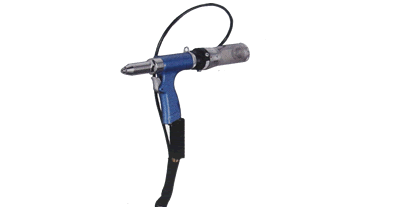

ARV-025M

Soft-Set® shockless technology offers ergonomically correct action to minimize CTDs
Ultra Jaws for longer jaw life
Lightweight, pistol grip riveting head weighs under two pounds and features remote intensifier
In-line vertical design for ergonomic benefits in a workstation environment
New design features unique ergonomic trigger placement in the natural operator gripping area for improved tool control
Exclusive hydraulic swivel fittings for ease of hydraulic swivel fittings for ease of operator flexibility
Built-in on-demand mandrel vacuum system for mandrel retention and evacuation to an off-line receptacle
Long stroke
Able to operate in conjunction with our exclusive ARF-700M autofeeding rivet presenter system
Set up to 3/16"(4.8 mm) rivets in all materials

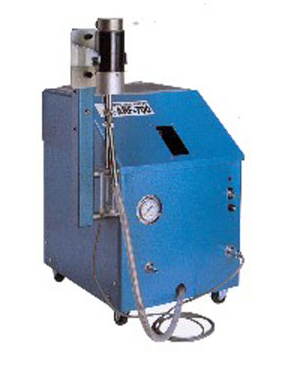

ARF-700M

Automatic rivet feeding system for 1/8"(3.2mm), 5/32" (4.0mm) and 3/16" (4.8mm)standard rivets
Portable hopper can be moved around or placed out of the way under counter or workstation
Adapts to a variety of workstation configurations for maximum productivity and operator comfort
Improved track feeding system
Mis-fed rivets drop down tube to holding tank without jamming or shutting down the machine
Electronic sensor turns hopper off when track is full of rivets, and re-engages as track is emptied
Works on any standard M-size Lobster tool with vacuum

Speciality Tools

Soft-Set Shockless Tools with Remote Intensifier Technology

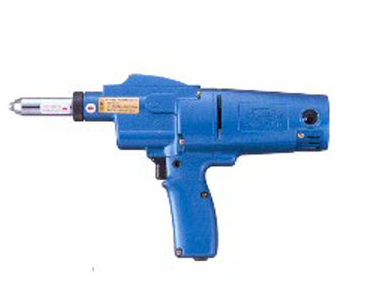

BR-100M
World's first cordless electric (re-chargeable) blind riveting tool. With its dedicated design and rotary mechanism for continuous, infinite stroke, BR-100M is ideal for use in auto repair and restoration, modular office systems assembly, outdoor sign construction, metal building assembly, heating,ventilation and air-conditioning installation and other on-site construction applications. Sets up to 3/16"(4.8 mm) rivets in all materials Extra nosepieces stored in tool housing Built-in overload protector guards against motor burnout Ultra Jaws for longer jaw life Comes packaged with charger and battery pack in molded plastic carrying case for convenient field use Ideal for off-line and outdoor riveting applications where compressed air is not available Cordless convenience in a world-class blind riveting tools.
BRC-96
Battery charger 100V, 115V, 220V or 240V power source available
BRP-96
One-hour rechargeable battery Up to 1000 rivets per charge (See specifications)

Electric riveter
Sets up to 3/16"(4.8 mm) diameter in all materials
Locked trigger option for continuous use
Durable construction for field use
Ideal for use in repair stations and body shops, modular office systems assembly, heating ventilation and air conditioning and other on-site construction applications
Ultra Jaws for longer jaw life
Packaged in a molded plastic carrying case for convenient field use

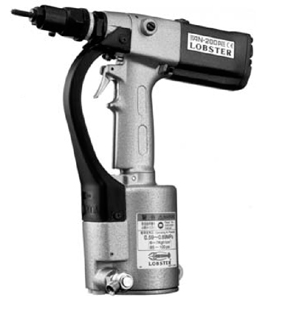

AN-200A

Lightweight spin-pull rivet nut setter
Sets up to 3/8" (M10) aluminum and steel rivet nuts (see table below)
Rapid placement sequence
One stage trigger - only one actuation of trigger spins rivet nut onto threaded mandrel, collapses rivet nut, then reverse spins itself out of completed setting
Easy stroke adjustment dial
In case of operator error, activation of unique reverse lever removes screw mandrel from rivet nut without damage or down time
Wear-resistant surface extend tool life
Rugged aluminum diecast construction
